Automotive PVB Film

Automotive PVB Film


The automobile windshield and side window made of Duoli automobile PVB film have passed all the international specifications and standards of automobile safety glass, which can well meet the safety, anti-theft, noise reduction and UV protection require, providing comfortable and safe interior environment for every passenger.

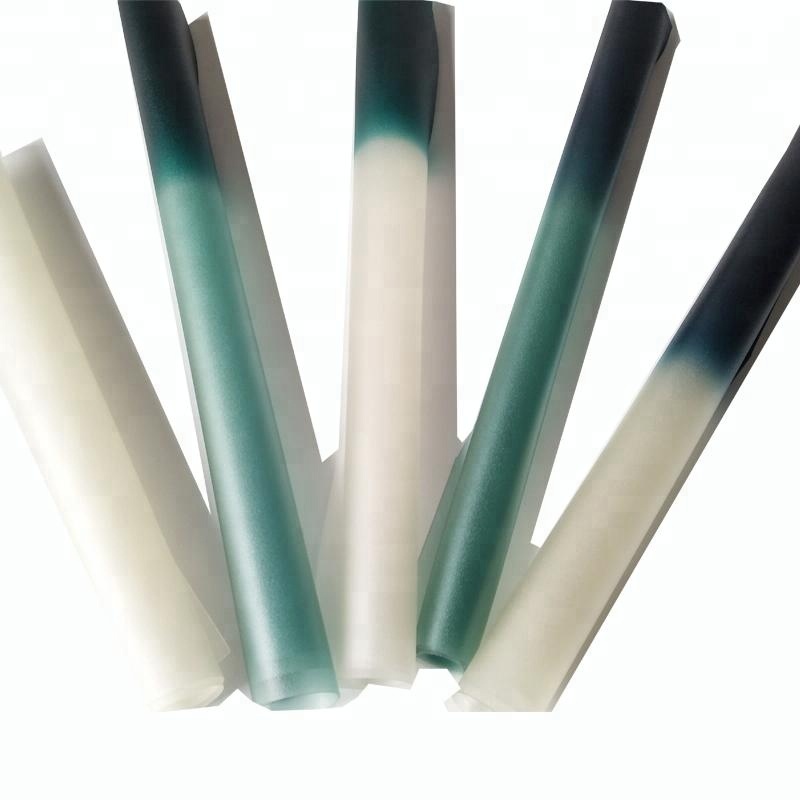

THICKNESS (mm) COLOUR TRACSMITTANCE (%) LENGTH (m)
0.76 Transparent >88% 200
0.76 F green >88% 200
0.76 Greenbelt >88% 200
0.76 Blue belt >88% 200
0.76 F green + Blue belt >88% 200

Technical Parameters

ITEM DATA
1 Appearance Requirement

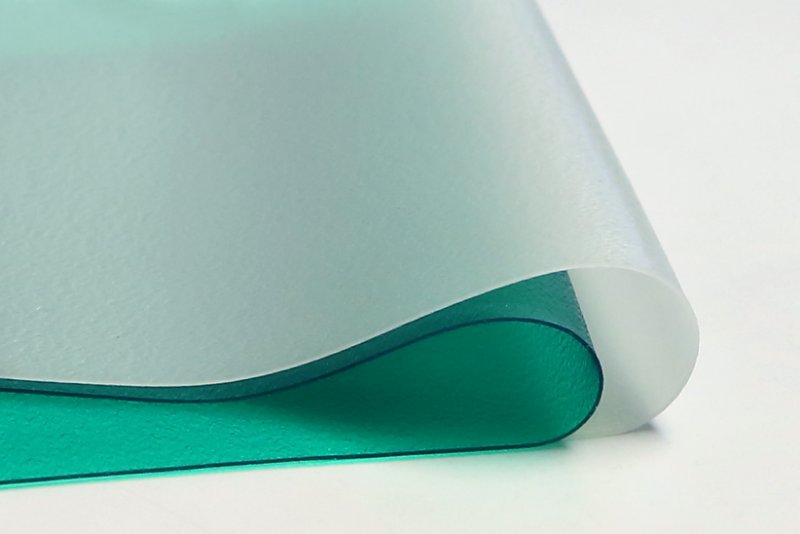

1.1 Appearance White or light yellow semi-transparent film, the surface is even, without scratches, bubbles or creases.
1.2 Dot-like particles and bubbles
<0.3mm Intensive existence are not allowed
≥0.3mm No more than 5 for each 200m; marked and add 0.5m each
2  Size
2.1Thickness  0.75-0.82(mm)
2.2 Uniformity No more than 20μm between any two point within 150m
2.3 Length Tolerance +(0-2)m
2.4 Width Tolerance +(10-20)m
3  Moisture Content 0.25-0.55%
4 Tensile strength ≥20
5  Haze ≤0.6%
6  Shrinkage Rate (60℃/15%)(%) ≤3.5
7  Whacking Value 3-7
8Penetrating Resistance Test Reference to National Standard GB9656-2003
9 Head Model Test
10 Cold Shock -20℃
11  Thermal Shock 40℃
12  Moisture Proof
13  UV Proof
14  High Temp Proof

Texture Of Material
