SGP Film

SGP Film

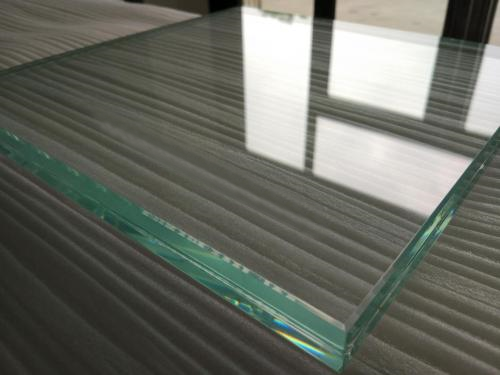

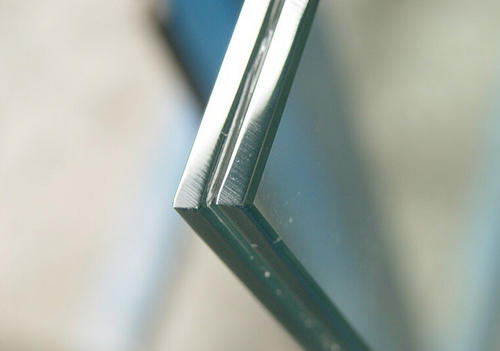

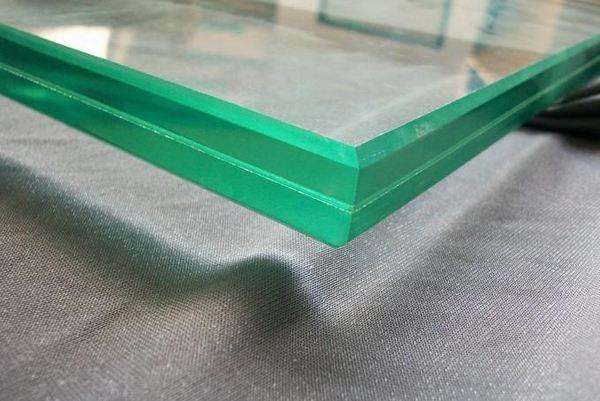

The shear modulus of SGP is more than 50 times that of PVB, and the tear strength of SGP is 5 times that of PVB. When the laminated glass produced by SKG film is stressed, there is basically no slippage between the two pieces of glass. The bearing capacity of two pieces of glass is twice as much as that of PVB laminated glass. Under the same load and thickness, the bending of SGP laminated glass is only 1/4 that of PVB laminated glass.

Thickness (mm) Width (mm) Length (m)
0.76 1220/1530/1830 100/200
0.89 1220/1530/1830 100/200
The factory can customize the width, length, and thickness of the product.
Physical Parameters SGP Film PVB Film Criterion of Detection
Tear(ing) Strength 49 MJ/m3 10-15MJ/m3 ASTM D-638
Tensile Strength 33.9 Mpa 28.1 Mpa ASTM D-638
Elongation at Break 385% 275% ASTM-412
Proportion 0.95 1.066 ASTM-792
Haze <<2.0% <2.0% JC/T 2166-2013
Yellow Index <1.5 6-12 JC/T 2166-2013
Refractive Index 1.5 1.47-1.5 JC/T 2166-2013
Light Transmittance 89% 89% JC/T 2166-2013
UV Barrier 99.9% 99.9% GB15763.3-2009
Rate of Water Content <0.1% 0.35-0.55% SH/T1770-2010
Melting Point 470℃ 410℃ ASTM D-1929
Flame-spread Index 30 60 ASTM E84
Combustion Index 215 350 ASTM E84

Texture Of Material
